Ubiqui-T360TM
Calidad de audio revolucionaria desde los paneles del techo.

Calidad de audio revolucionaria desde sus placas de techo. Con el Ubiqui-T360, no solo tiene una instalación de audio verdaderamente invisible, tiene una instalación que suena genial.

Categoría:

Descripción

Revolutionary audio quality from your ceiling tiles.

Suspended ceilings are everywhere – in offices, classrooms, hallways, convenience stores, basements and so on. Installing speakers into these environments has always been problematic – custom brackets need to be installed to accommodate the weight of cone speakers, or tiles have to be replaced with panel speakers that don’t look the same as the acoustical tiles.

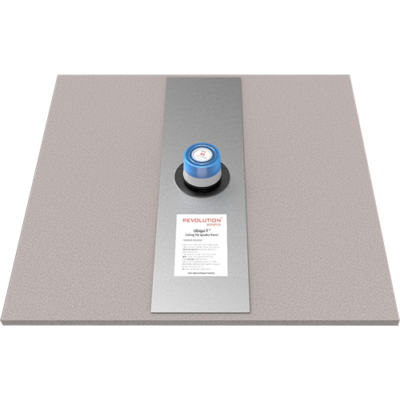

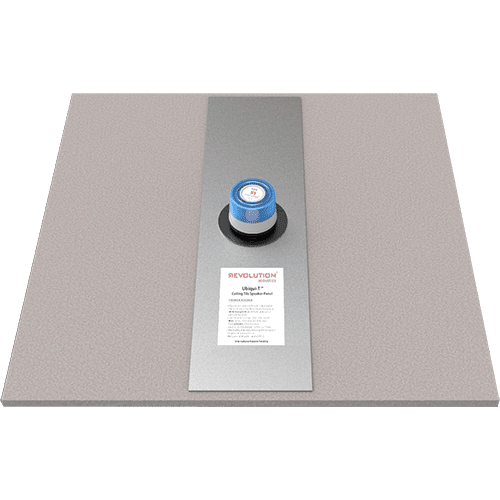

The Ubiqui-T360 solves these issues, while at the same time providing rich, encompassing audio that fully fills the listening space. Our Ubiqui-T360 Ceiling Tile Adaptor panel attaches to an existing ceiling tile and accommodates one SSP6 Multiducer. In sound masking installations, a single Ubiqui-T360 with SSP6 can replace up to 9 traditional sound masking emitters. And, it installs in seconds – no tools are required.

With the Ubiqui-T360, you not only have a truly invisible audio installation, you have an installation that sounds great.



Specifications Ubiqui-T360
Impedance 8Ω (70.7V and 100V compatible)
Frequency Response 100-150Hz – 20KHz
Max Power 200W (instantaneous peak)
Max Continuous Power 24W unenclosed, 15W enclosed
IP Rating IP66 Certified – water and dust proof (full system)
Regulatory UL 2043 listed (full system)
Weight 0.66 lbs (0.30 kg)
Dimensions 23.25” L x 6.00” W (588.0mm H x 152.0mm W)

Installation

Download the Ubiqui-T360 cut sheet
