What is Immersive Live?
The full audio tactile based solution to improve and make accessible live, gaming, VR and cinema experiences.
Powered by SUBPAC
Advanced technologies
Sound culture for all
Immersive Live is based on the patented Subpac technology, the tactile bass system that delivers a new physical dimension, enhancing the sensations of any sound experience.
With a synergy of advanced technologies (haptics, proprioception, bone conduction, RF audio transmission, unified charging system complies with standards of establishments open to the public), we have developed a unique offer on the market, IMMERSIVE LIVE.
IMMERSIVE LIVE guarantees to the locations and programmers
the benefit of the most powerful devices on the market in terms of immersion and accessibility.
Guaranteed emotions
Wall of sound anywhere
Augmented immersion
The SUBPAC are revolutionizing the way we approach music and provide users an access to new sensations called "audio physical". An immersion of the senses that provokes infallibly, the astonishment and desire to do it again.
It is no longer necessary to be close to the stage to feel the sensations of live, this specificity opens new perspectives of applications for event organizers. In addition to providing a total immersion, the device is also silent.
The transmitted frequencies multiply the visual immersion and add a physical dimension allowing to feel all the subtleties of the sound universes of the spectacles, experiments or projections.
Cultural practice
Mixed audience
The return of the deaf public
With a versatile solution, we work with the places in the creation of cultural workshops using "Immersive Live" for musical awakening, MAO, Beatbox, Dance, experimentation and many more...
Musical performances are very rarely adapted to the hearing impaired and even less to the deaf. In the equipped venues, we are witnessing a real mix of audiences around a common passion, music.
The precision of the solution enables to experience the music better than with any other device. Particularly suitable for the profoundly deaf with and without implants, it can be used by the hearing-impaired public to complement another solution. We are currently working with specialized centres to highlight the advantages of using low frequencies on people with autism, in terms of access but also cultural practice.
Appplications
Compatible with any experience


Operas & Symphonies

Cinema

Performances

Museum & Arts

Music schools

Specialized institutes

Theme & VR/AR parks
Solutions
Meeting the requirements of establishments open to the public
Audio Tactile Vests

SUBPAC X1 Live version
The Patented Wearable Audio Tactile Bass System (available in dec 2022)
Initially designed for musicians, this version of the Subpac meets the requirements of public spaces. The “Live” version features an on-board UHF transmission device, customized connectivity, and professional battery management.
- 2 patented tactile transducers integrated in each SUBPAC vibrating waistcoat, the reference in tactile music reproduction.
- Increased frequency band: 1Hz -> 250 Hz.
- Encapsulated new generation radio frequency (UHF) reception system with secure connectivity for unified vibration and volume control.
- Range up to 1km spherical (or up to 500 meters from the transmitter) with simplified frequency control on 3 available channels (one colour/channel).
- Optimised overall autonomy (more than 8 hours of use).
- Disinfectable polymer.

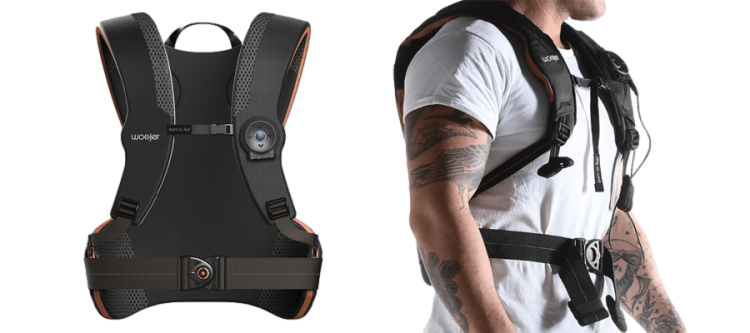

WOOJER Live version
The 360° immersive experience
It verberates precise frequencies throughout your entire body, delivering a unique and mesmerizing experience. The Ocsi™️ TRX2 oscillators were redesigned to deliver the most Powerful & Accurate™️ haptic feedback ever. The 6 oscillators operate independently and are positioned strategically within Vest 3 to facilitate 360-degree, full-surround perceptual inference. .
- Six powerful, patented Osci™ TRX2 transducer.
- Frequency band: 1Hz -> 250 Hz.
- Multi-Channel*, 7.1 Surround** & Stereo Modes.
- Supports Bluetooth headphones.
- Built-in dual BT 5 (TX/RX).
- E1-250Hz frequency range
- Advanced DSP control.
- Fast Power Delivery Charge.
- Analog & Digital inputs.
- Wired headphone amplifier.
- Up to 8 hours playtime on single charge.
- One-size fits all.
- Breathable fabrics & lightweight.
- 1.5kg / 3lbs.
- Adjustable straps – One size fits most.
Transportation & Storage Cases

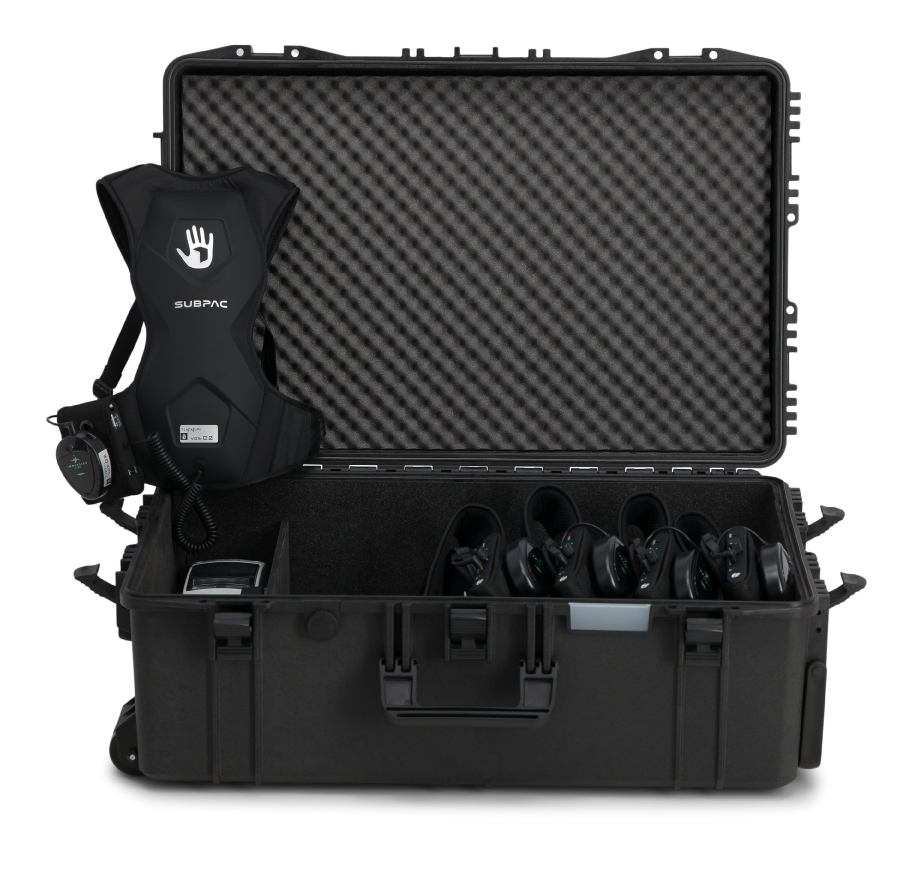

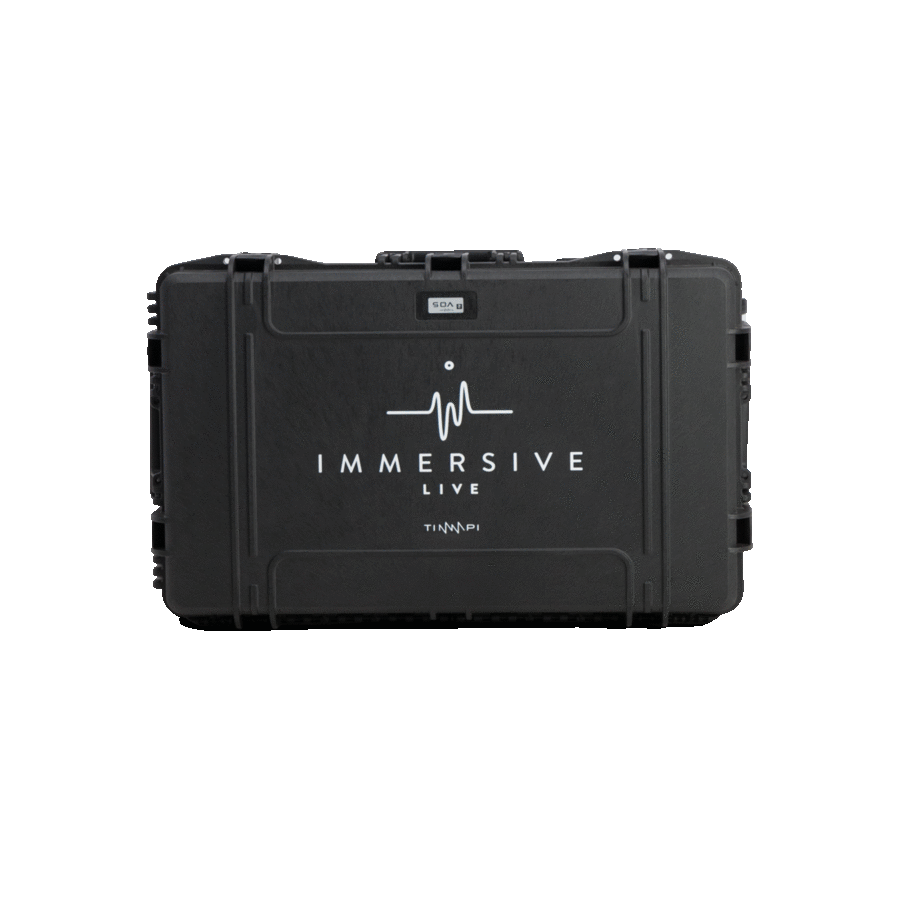

IMMERSIVE LIVE CASE - S5 version
The Latest Generation & Customised professional patented cases
Designed to optimise storage, recharging, transport and loans.
- Optimum protection against the elements, dust and impact.
- Polymer and fibreglass injection moulding.
- Waterproof, dustproof and chemical resistant (IP67 certified).
- Automatic pressure relief valve for safe transport and long term storage.
- Easy opening double latches.
- Temperature range: -30 / 90 °c (-22 / 194 °f).
- Load tested soft grip handle, double padlock holes, stackable locking system, nylon pins, corrosion resistant.
- Customised integration and technical layout, compartmentalisation of the solution.
- Miniaturisation of the boxes – 4th evolution.
- Intelligent and flexible holding of all equipment.
- Customised foaming of the sides (HD and honeycomb type), anti-fungal treatment of wood and foam.
- Labelling of each element.
- External dimensions of 816mm x 540mm x 306mm (L x W x H)
- Total weight with all equipment : 20kg (44 lbs).
Unified Charging Systems

IMMERSIVE LIVE CHARGING SYSTEM - CS5 version
The patented and NF-certified electrical safety system
Compliant with the safety standards of the ERP (establishments receiving the public).
- Allows the simultaneous and secure charging of all the Live version backpacs and the radio frequency transmission devices (UHF).
- The system protects against damage caused by overloading, short-circuitingor earth leakage.
- This certified system guarantees an optimal life span of all your equipment.
- Intelligent control and distribution management per device type.
- Casing of the load modules.
- Integration of an automatically controlled main electrical control panel for monitoring the various parameters of the unified load.
- Tests under normal/critical load conditions, overload/priming simulation for a ready-to-use solution.
Sensorial Devices
Pro Audio Transmission
Pro Audio Recording

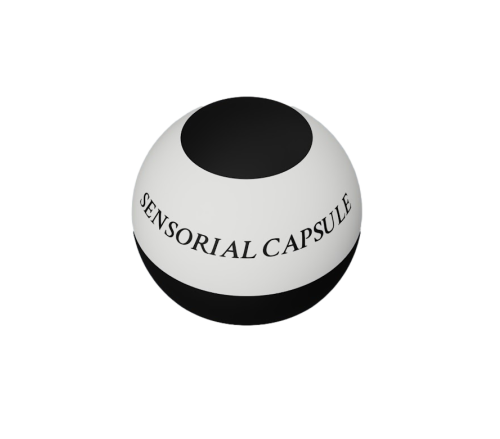

THE SENSORIAL CAPSULE - C1 version
The First Full Frequencies Audio Tactile Device (coming up at the end of 2022)
Feel music by contact (hand or other part of the body) from 50 to 20 kHz and transform any surface, wood, glass, plastic, etc. on a sound diffusion surface.
- Frequency response from 50 to 20 kHz.
- Vibratory field available over the entire sphere (possibility of holding the sphere in both hands).
- Vibrating sphere which has the capacity to transmit vibrations by bone conduction.
- Maximum power per Sphere possible: 280 Watts (130 Watts rms).
- Wireless audio transmission.
- UHF, Wifi and multichannel HD systems
- Induction neck loops
- Indoor & outdoor solutions
UHF transmission (radio)
- Certified Radio Frequency Transmission (863.5MHz / 864.5MHz).
- Range up to 1km spherical.
- 3 channels available.
Neck loop
- 3.5mm jack allows wireless connection to hearing aids equipped with a “T” coil.
- The listeners plug the loop into the Subpac Live version, then slide the loop around their neck, the “T” coil of the hearing instrument picks up the sound and then transmits it back to the listener.
Wireless multichannel HD transmission
-
- Indoor & outdoor
- Electric & acoustics instruments
INCLUSIVE
Inclusive solution for the deaf and hearing-impared
UNIQUE
Worldwide unique solution
HIGH STANDARDS
Complies with standards of establishments open to the public
PREMIUM SUPPORT
24/7 customer service, defective units replacement less than 72h
They talk about us!

Backpacks that make those who can not hear music vibrate.
“I had never tried something like that, my only experience
with music had been to get close to a speaker in a nightclub”,
explains a visual poet with congenital deafness.
